Stanley No. 78 - After

There were much less work to do in this project that I anticipated. This is mostly due to the awesome efficiency of a product called Evaporust. I don't want to turn this post into an infomercial, but it worked perfectly, didn't need to be handled with gloves and can be reused apparently a few more time. If you are a chemist geek, the secret is a chelator targeting only iron in the salt form and not the metallic form.

So let's have a before and after moment:

Before

After.

I'm still too impatient to truly polish this to a mirror surface.

I soaked all the parts in evaporust overnight, and rinsed them off  with minimal scrubbing using a toothbrush. I then lapped the sole using a dead flat piece of MDF and two successice grit of sand paper (100, 220). I was expecting that a plane that has been welded back together like this would be out of alignment. To my amazement: no. I don't know how my wife's grand-father managed to do this, but this plane was welded back with more precision than the flatness of my last blockplane right out of the box! The 100-grit sand paper proved to be unnecessary. A little sanding on all three sides and this bad boy was back into business.

This is it, the blade was very sharp, despite some 30 years or more of inactivity. I worked on it until the bevel was very flat and honed to a razor's edge. I can't wait to have to plane a rabbet by hand.

I think that this plane date from anywhere between 1903 and 1913. This is a perfectly functional, 100 years old hand tool.

Stanley No.78 - Before

This is it, it is time to get this Stanley No.78 back to its maiden appearance. This plane, despite its rough edges, saved me hours of work when I made the buttons for the Hayrake Table. I'm twice as motivated to add this bad boy to my toolbox.

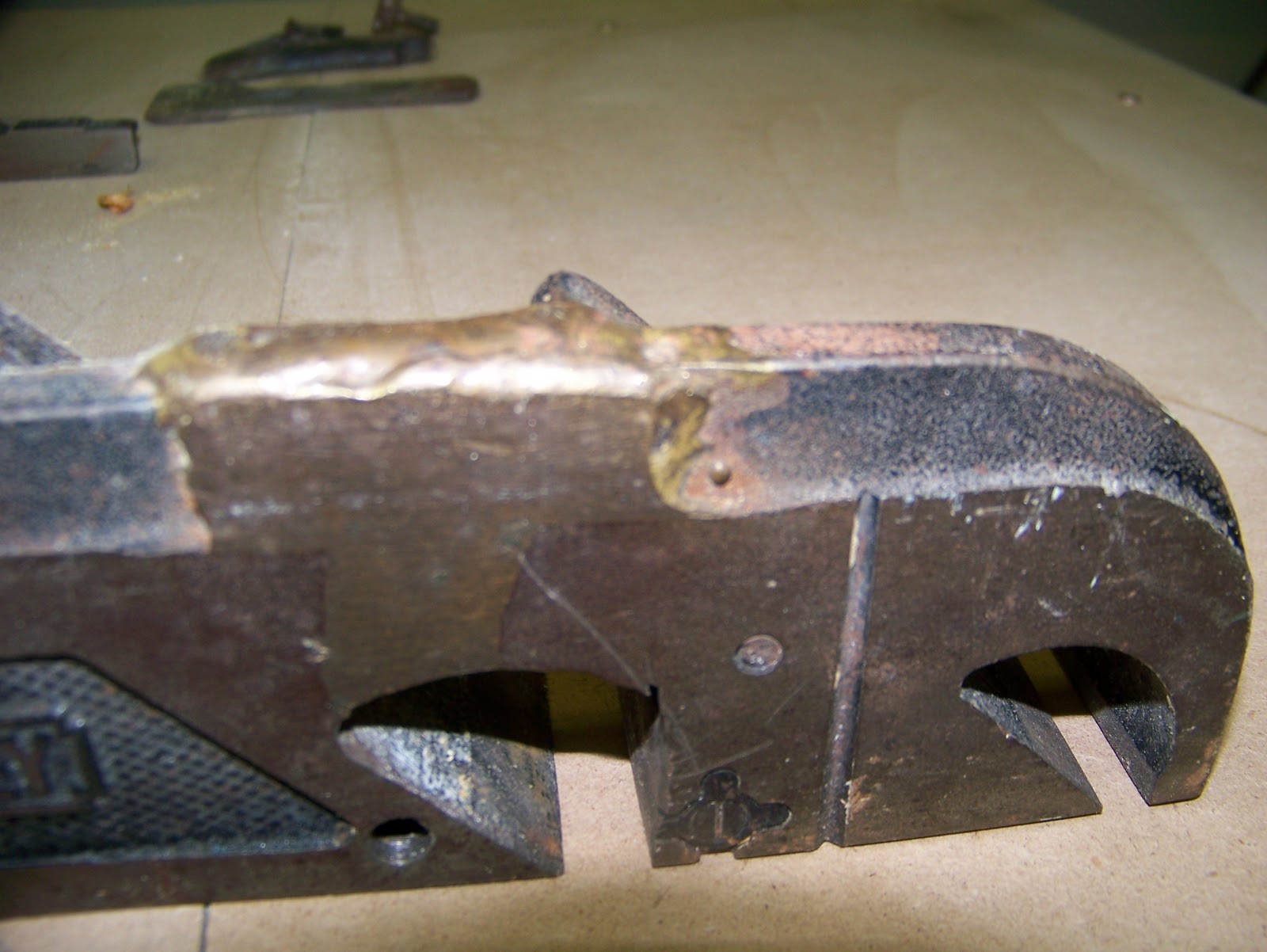

Inside face. Notice the welded seam at the top.

Outter face with fence.

What? Something was ever made in Canada?

Taken apart. Only a few parts involved.

This doesn't look great, but the sole actually looks flat.

The Hayrake table is done!

After some odd 70 hours of work (or so), the Hayrake table is finally done. Well, almost as I need to make the buttons to fasten the top to the stretcher. However, for now we'll assume that gravity will keep this nearly 100lb table top in place.

The design is based on finewoodworking.com 's design. The difficulty level was "intermediate", which was much warranted by the complexity of the joinery underneath. The $12 design were useful, although I had to wing most measurements to fit the vagaries of working with rough lumber AND getting the table to be a whole 14" longer than designed.

The stretcher is made of hard maple while the tabletop is made of quatersawn white oak (which looks red to me). Milling the oak in all of its 8' length was impossible on a 6" jointer, so I had to improvise and joint on the tablesaw using a 8' melamine shelf as a sleigh (and some weird clamps that I found at busy bee tools). Overall, the table top is fine although I find it a bit rough. I have to say that I learned how to properly used the No.5 Handplane on the job. Some 6 hours of intense aerobic exercise were needed to bring the top to a reasonable flatness. I also had never dealt with such a large surface to finish: two danish oils and 5 Polyurethane coats later, I thing that I'm getting a feel for the process.

Flat and shiny...

Chloe, ready to baptize this bad boy.

I'm glad to be done and look forward to finish my ambitious TV stand. It is nice to know that this table will be used every days, for decades to come, to have dinner with my family, spill wine, pass the salad, violently roll our eyes, etc.

Here are a few more pictures:
